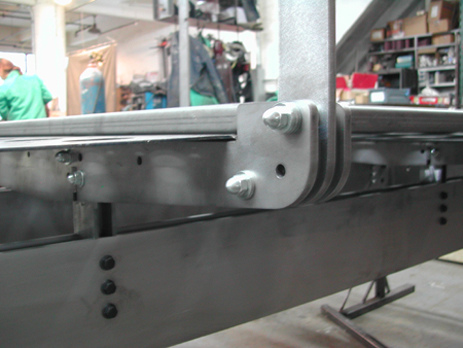

handrail post bottom detail
Image by Caliper Studio
Center stringer comfort stair connects two office floors in Starret Lehigh constructing. Stringer and slab edge assemblies are blackened. Twenty 4 stainless steel treads are welded to the stringer type a continuous ribbon. 1 1/four" diameter handrail posts are continuous bent "C" shapes that wrap around treds and are welded to stringer. Stair will be delivered to site in a single piece [24′ extended 3′ wide 3′ tall @ 2000lbs].
Style by Diller Scofidio + Renfro
Detailing, Fabrication and Installation by Caliper Studio. Caliper Studio engaged Eckersley O’Callaghan & partners for engineering solutions.
Connection to slab transistion disc
Image by Caliper Studio
Center stringer comfort stair connects two workplace floors in Starret Lehigh building. Stringer and slab edge assemblies are blackened. Twenty 4 stainless steel treads are welded to the stringer type a continuous ribbon. 1 1/four" diameter handrail posts are continuous bent "C" shapes that wrap around treds and are welded to stringer. Stair was delivered to website in a single piece [24′ extended 3′ wide 3′ tall @ 2000lbs. Glass is two 1/two" layers of low iron tempered glass with PVB interlayer. Every panel is a 148.375"x41.25" rectangle that weighs 522lbs. Reduce out in concrete floor is trimmed with a box of 1/2" thick blackened steel that was totally prewelded in the shop. The box picks up the load at top of stair and serves as a custom base shoe for the glass.
Design and style by Diller Scofidio + Renfro
Detailing, Fabrication and Installation by Caliper Studio. Caliper Studio engaged Eckersley O’Callaghan & partners for engineering services.
