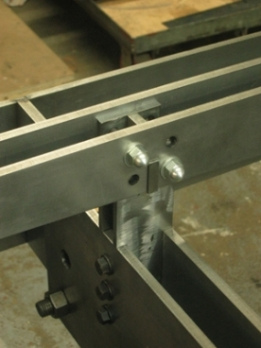

Catwalk fabrication detail
Image by Caliper Studio
Developed for a multimedia design and style firm, this blackened steel catwalk connects a mezzanine to a conference area. The catwalk consists of cast glass lenses imbedded in the floor reminiscent of the cast iron sidewalk grates common in lower Manhattan at the turn of the century. The laser reduce elements were detailed in solidworks to match together like a kit-of-components that was assembled and installed more than a weekend.

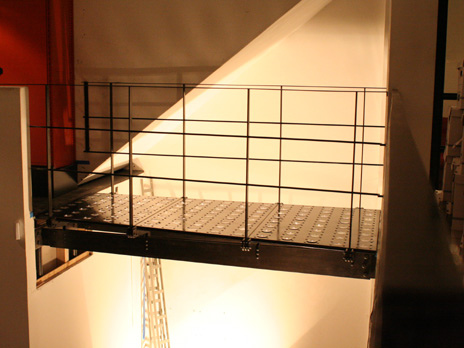

Catwalk side view
Image by Caliper Studio
Designed for a multimedia design and style firm, this blackened steel catwalk connects a mezzanine to a conference room. The catwalk consists of cast glass lenses imbedded in the floor reminiscent of the cast iron sidewalk grates common in lower Manhattan at the turn of the century. The laser reduce components had been detailed in solidworks to fit together like a kit-of-components that was assembled and installed more than a weekend.
