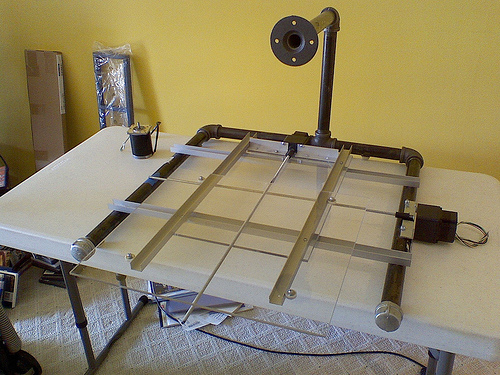

3-Axis CNCMilling China Machine
Image by r_william.king
The idea for this project came from www.instructables.com/id/Easy-to-Build-Desk-Top-3-Axis-CN…
The whole unit is about 2′ x 2′ x 2′. 3/4 inch plexiglass is used although I will have a piece of something (say, MDF) on the top of the axis as a cutting surface. I have not yet decided.

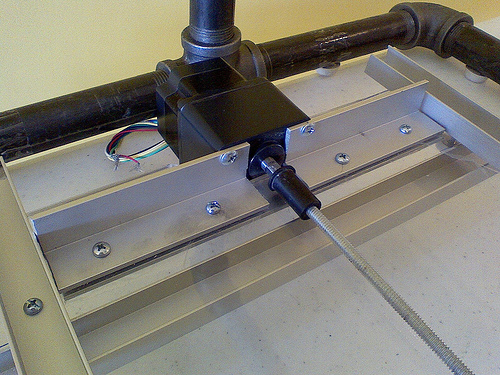

3-Axis CNCMilling China Machine Motor Mount 3
Image by r_william.king
A view of the entire motor mount bar. 3 pieces of L-channel (1 inch) were used to brace the motor onto the stage.
Four screw holes were drilled into the L-channel to support the four mounting holes on the motor itself. Four screwholes were also drilled across the beam through both sets of L-channel to support the motor onto the plexiglass.
